HTS Transwell®-96 Permeable Support with 0.4 µm PET Membrane, 5 per Case, Sterile

ItemSize List Price Qty
P658-7369 5/CS $1,570.16

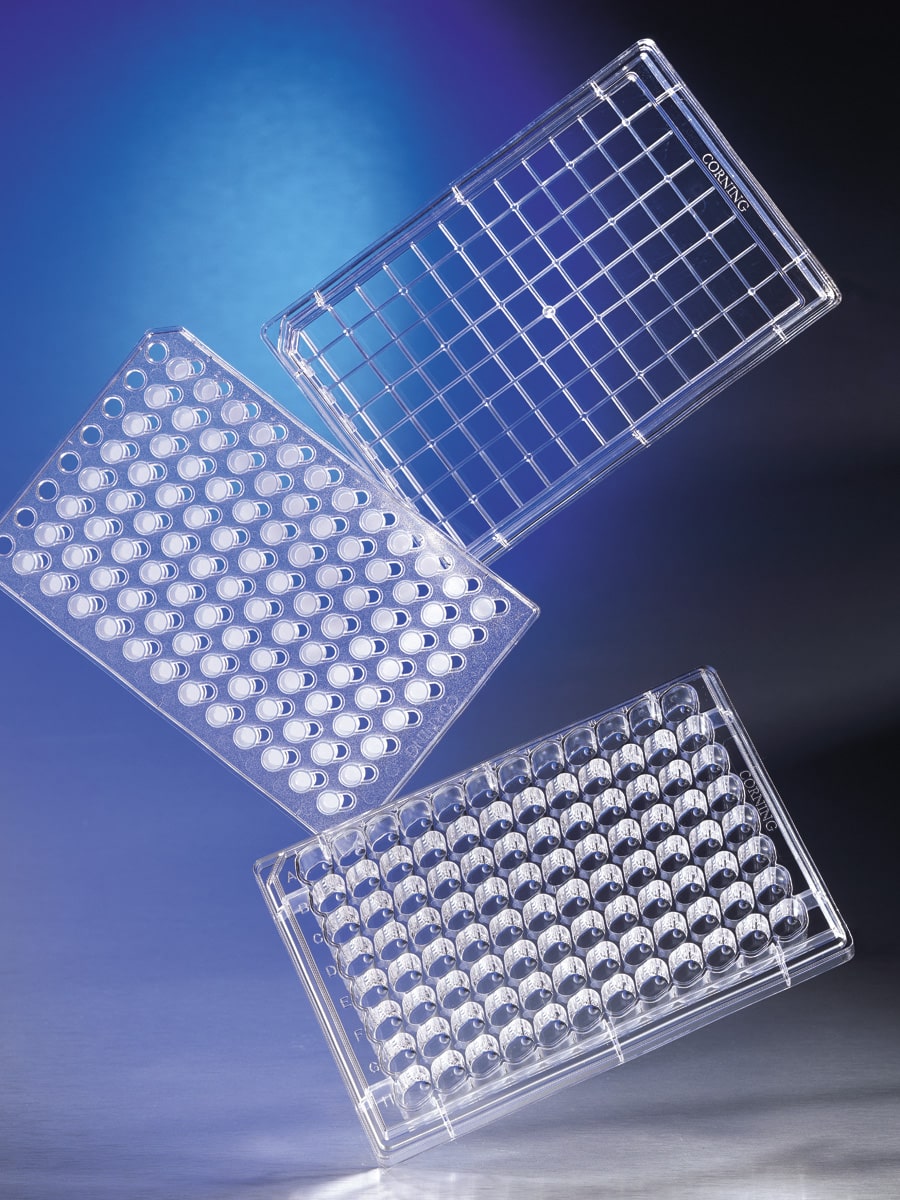

  • Product includes: Transwell® unit (1 integral tray with 96 wells), reservoir plate (for cell growth steps), receiver plate (96 wells for growth or assay steps) and 2 sterile lids; 5 sets per case
  • 0.4 µm pore size PET membrane
  • Membrane is treated for optimal cell attachment
  • Receiver and reservoir plates are untreated
  • Cell growth area is 0.143 cm² which is 20-50% greater than other brands
  • Large apical and basolateral access ports
  • Automation optimized design with multi-channel feeder ports, improved gripping surface and bar coding
    • The HTS Transwell-96 permeable support has an array of 96-wells with membrane inserts connected by a rigid, robotics-friendly tray that enables all 96 inserts to be handled as a single unit.
    • Choice of either polyester (PET) membrane (0.4 µm, 1.0 µm, and 8.0 µm pore sizes) or polycarbonate (PC) membrane (0.4 µm, 3.0 µm, and 5.0 µm pore sizes)
    • 0.143 cm² membrane area per well, providing 20% to 50% more surface area for cell growth than other commercially available systems
    • Large apical and basolateral access ports allow efficient media sampling and facilitate automated or manual access.
    • Optimized for automation, with multichannel feeder ports, improved gripping surface, and standard bar codes
    • The reservoir plate allows for simultaneous feeding of 96 wells and comes with a removable media stabilizer to reduce the risk of spills during handling
    • The receiver plate isolates each well to enable 96 individual assays.
    • Sterile
    • The HTS Transwell-96 systems (0.4 µm PC, 0.4 µm PET, and 1.0 µm PET) are packaged with the 96-well insert plate in a reservoir plate and includes the 96-well receiver plate with lid.
    • The HTS Transwell-96 plates (3.0 and 5.0 µm PC, 8.0 µm PET) are packaged with the 96-well insert plate in the 96-well receiver plate with lid. Reservoir plates may be purchased separately.

    Additional information

    Weight 33.6 oz
    Dimensions 11 × 8.75 × 6.25 in
