PYREX 500mL Kjeldahl Nitrogen Distilling Apparatus, Standard Taper Joints

ItemSize List Price Qty
L618-3340-500 1/CS $447.24

Description

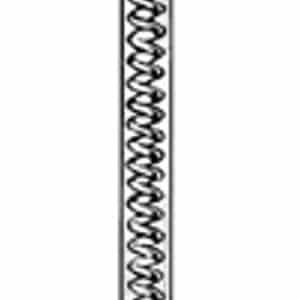

This PYREX® 500 mL distilling apparatus is used for determining nitrogen in organic compounds. This assembly includes a Kjeldahl flask specifically developed for this process and a Graham condenser with 10mm O.D. tubulations. Both the digestion and distillation stages can be performed in this flask. The assembly shown is the distillation stage, where the amount of ammonia, and hence, nitrogen, is established. The inlet tube allows the permanganate solution to be introduced after distillation. Supplied with an outer Standard Taper 29/42 joint on the flask and an outer Standard Taper 19/38 joint on the Graham condenser. Total height is 410mm; total width is 300mm; maximum O.D. is 97mm. For replacement Graham condensers, see No. 2540-200.This PYREX® 500 mL distilling apparatus is used for determining nitrogen in organic compounds. This assembly includes a Kjeldahl flask specifically developed for this process and a Graham condenser with 10mm O.D. tubulations. Both the digestion and distillation stages can be performed in this flask. The assembly shown is the distillation stage, where the amount of ammonia, and hence, nitrogen, is established. The inlet tube allows the permanganate solution to be introduced after distillation. Supplied with an outer Standard Taper 29/42 joint on the flask and an outer Standard Taper 19/38 joint on the Graham condenser. Total height is 410mm; total width is 300mm; maximum O.D. is 97mm. For replacement Graham condensers, see No. 2540-200.

Additional information

Weight 27.2 oz
Dimensions 15.25 × 9.75 × 8.25 in
Vendor Number

3340-500

Product Manufacturer

Pyrex

Unit Quantity

1/CS
